Digital LED Countdown Timer

We offer two Digital LED Countdown Timers. We offer a PoE Countdown timer, which is ideal as a hallway countdown timer displaying the amount of time available between class changes. This is perfect for K-12 schools where students must get from one class to the next class in a limited amount of time.

The scheduling of the timer is accomplished with the easy to use software that allows you to use program the exact time you want the procedure to start and finish. After the count is completed the clock will resume displaying accurate synchronized time.

Please visit our PoE Clocks for additional information on this product line.

The second Timer we offer is traditionally used in Operating Rooms in hospitals.

This multifunction Digital Display Clock/Timer provides your facility with precision count-up/count-down capabilities. A switch control allows user to operate the timer in multiple modes. When not in timer mode, it functions as a stand alone synchronized clock. Learn more.

Countdown Timer

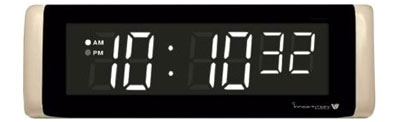

White Digital LED Countdown Timer
2.5″ (6.35cm) 6 Digit White LED Timer
Part # 633002

Red Digital LED Countdown Timer
2.5″ (6.35cm) 6 Digit Red LED Timer
Part # 633007

Switch Controller

Switch Controller

Features

  • Modern, Contoured Style
  • Highly Visible LED Display
  • 2.5″ (6.35cm) 6-digit, Red or White LED
  • Count-Down Timer Mode Displays Time Remaining
  • Count-Up Timer Mode Displays Elapsed Time
  • Audible Alarm at the End of Timer Mode
  • 12/24 hr. clock display when not in timer mode
  • Automatically Adjusts for DST

Our Digital LED Countdown Timer can be used for many different applications. The number one market is the healthcare industry. We have our countdown timers installed in healthcare facilities throughout the United States.

These countdown timers provide a crucial function in the operating rooms of many hospitals. The countdown timer provides three main functions. It display accurate synchronized time when it is not in timer mode, it can perform a countdown function, and it can perform a count up function.

The countdown and count up functions are controlled by a switch controller. The switch controller is a single panel that is connected to the digital display by a wire. The single panel fits into a single gang box. A single gang box is an electrical box that would hold, for example, an electrical outlet and in our case the switch controller.

The switch controller has an easy to understand panel to start a timed procedure. The first step is to set a time. If an event was to take 30 minutes the timer could be toggled to 30 minutes and then the countdown or count up can be started with a push of the start button. The countdown function will show the time remaining whereas the count up function will show the time elapsed.

The countdown timer can be used for other areas outside of healthcare. For example, if a testing room wanted to use a countdown clock to control an event the countdown timer is perfect during a timed event.

When the countdown timer is not being used it functions just like our LED Digital Display Clocks. The clock will receive its time from the transmitter and display accurate time.

Our wireless clock system is a powerful yet simple maintenance free synchronized clock system. The primary part of the system is the transmitter. Our transmitter operates at a highly efficient 467 MHz frequency. This frequency provides for the most complete coverage on the market today.

This frequency is superior in penetrating typical commercial building structures. Concrete is porous thereby enabling the signal to successfully penetrate and achieve complete coverage of a facility. One transmitter can cover an area of approximately 300,000 square foot. For buildings that are larger or multiple buildings we can use a repeater or outdoor antenna.

When using our 5 watt repeater you will not achieve the same coverage area as our 5 watt transmitter because the placement of the repeater requires it to be within the broadcast area of the transmitter. This allows the repeater to latch onto a strong signal and re-broadcast the signal.

The LED countdown timer’s ability to function as an accurate synchronized clock and switch easily to the countdown or count up function makes it ideal for many different applications. It comes with our 1 year warranty. Please call our toll free telephone number; 888-559-5565 and speak with one of our sales associate to get all your questions answered.
