Tone Generator & Bell Specifications

Tone Generator Specifications

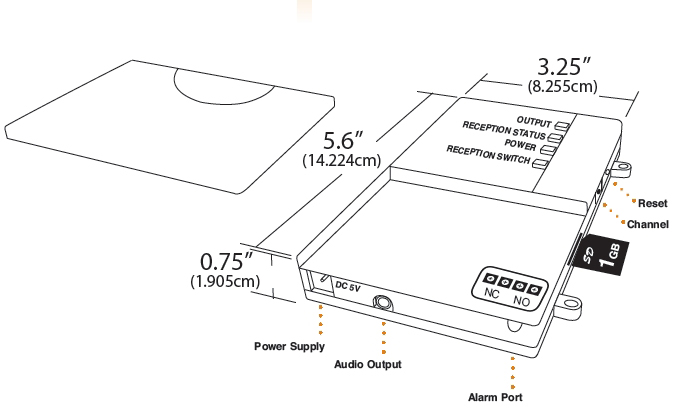

Tone Generator Specs

  • Connects into PA System or Bell
  • Synchronized with Transmitter
  • Selectable Tones and/or Music

Dimensions: 3.25″ L x 5.6″ D x 0.75″ H (8.255 cm x 14.224 x 1.905 cm)
Weight:0.3 lb (0.13kg)
Power Supply: Input: 120 VAC, 60 Hz 10 Watt Output: 5 VDC 0.5 Amp (6′ (1.83m) cord)
Dry Contact Output: Normally Opened/Normally Closed Relay 240 VAC, 4.4A Maximum
Audio Output: Balanced or Unbalanced depending on cable used

Bell Specifications

  • Individual or Multiple bells

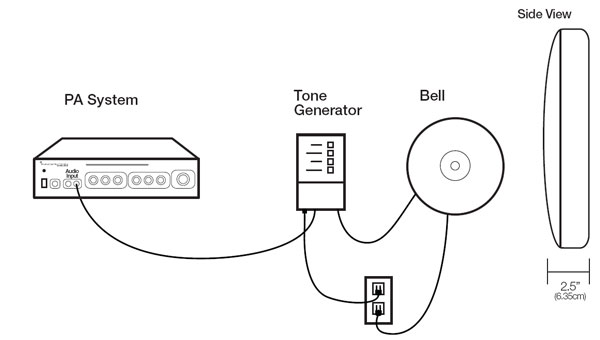

  • Simplistic Connection with Tone Generator
  • Traditional Ringing Sound, Optimal for Large/Noisy Areas

Dimensions: 10.5″L x 10.5″ H x 2.5″ D (26.67 cm x 26.67 x 6.35 cm)
Weight: 4lbs (1.8kg)
Power Supply: Input: 120 VAC
Operating Current: 25 mA
Sound Output (Decibels): 95 dB
Operating Temperature: TBD / 0˚C – 65˚C

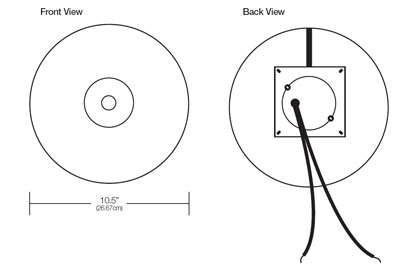

Bell Front and Back View

Bell Front and Back View
